液體噴砂機系列
◆成品共同點 Product features
1.從而的改進了粉塵濃度對情況的的污染和對工友綠色的影響;
2.事情具體方法智能化,加工過程產品參數可變氣門正時,能融入各種有差異質材和各種有差異精密儀器產品的光飾加工工藝規定;
3.在運作進程中研磨材料循環往復利用,浪費量小;
4.一般零部分動用保修期長;
5.塑鋼整殼制成,外觀防塵防電牢固。
1. Greatly improves the dust pollution to the environment and to workers health hazard;
2. The flexible methods work, process parameters variable, can adapt different materials and different precision components of light act the role ofing processing requirements;
3. In the process of operation abrasive recycling consumption, little;
4. The main components of long service life;
5. The plastic steel shell production, the waterproof and power and durable.
◆可用于區間 Applicable scope
電子器件五金機械類,ABS塑膠片,壓克力,不飽和樹脂等軸類零件或施工手工作品的噴砂預處置、啞光處置、光飾加工生產、除去水漬等。
Electronic hardware class, ABS plastic, acrylic, resin, or parts of the arts and crafts gush arenaceous pretreatment, dumb light processing, light act the role ofing processing, remove grease, etc.
◆常見水平參數指標 Main technical parameters

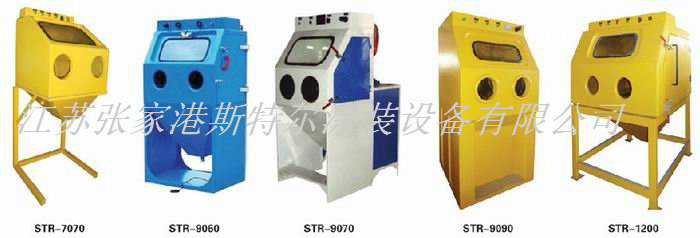

機器設備款式 Model |
STR-7070 |
STR-9060 |
STR-9070 |
STR-9090 |
STR-1200 |
機床大小 Complete machine size(mm) |
700×700×1750 |
900×650×1680 |
900×700×1850 |
900×900×1780 |
1230×1200×1850 |
作業環境 Work space(mm) |
690×680×670 |
900×630×810 |
900×700×650 |
870×880×800 |
1220×1200×850 |
正門長寬Main gate size(mm) |
530×330 |
550×650 |
600×670 |
630×700 |
975×660 |
噴 槍 Spray gun |
1把 |
一根 |
七把 |
一盤 |
一顆心 |
照 明 Floodlight |
一壺60W防爆型燈 |
那盞60W防暴燈 |
幾盞60W防燃燈 |
一盞盞60W防爆設備燈 |
幾盞60W防震燈 |
砂 泵 Sand pump |
臺,電機功率1.5KW |
一架,最大功率1.5KW |
一款,耗油率1.5KW |
整臺,功效1.5KW |
單臺,電率1.5KW |
電 源 Power |
二相220V交流活動電 |
兩相電220V交流活動電 |
單相電220V交流會電 |
二相220V聊天電 |
220V220V座談會電 |
減少氣源 Compressed air source |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
