無塵自動循環回收噴砂機系列

◆產品的特色 Product features（請繼續手機瀏覽挺大量例子相冊圖片供學習）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”噴涂車間氣體灰塵公共衛生細則。砂料、灰塵手動回收分類處理、分離法、反復的選擇，工作上車間干干凈凈無灰塵影響。健康設備健康來設計，很大程度糾正了工人們的工作難度和作業答案生態環境擁有除塵器原理安全裝置，可自然快速清理篩選芯積灰。預置分水篩選器。可對壓縮成氣確定兩次油和水區分。自然放料機，將吸砂頭插進砂料中，開啟真空箱泵操作系統將自然放料機。PLC可編程管控器學習管控（加配），料位報案功能性(標配)。設置調壓旋紐、反吹風按紐。安穩的氣控裝置與爐料閥。工作的半經20-70米，外表整理平衡等級達Sa2.5-3級。配值平安防潮、防水主機電壓排插電壓線電源插座，更非常以便于操作方法的。配值的操縱主機電壓民航排插電壓線電源插座更非常以便于操作方法的。特點自然的除塵的操縱調整面板與自動調整箱。維修保養與維檢越來越更非常以便于。車式殼體節構，防水除塵，手機移動更非常以便于。殼體門扇主要包括快捷鍵門瑣連接方式，組裝更非常以便于。車把開關按鈕的操縱（自動調整DC24V）。一機三用，存在建成式、工藝吸砂器、健康型七種設施的的功能。噴砂服務器用到特俗的控制電路開關，事情有壓力在0.2Kpa-0.8Kpa比率內無數個可以調節，可能夠滿足各個零件的噴砂制作工藝追求。實用比率：防銹、除車漆、焊接縫處理（還包括304不銹鋼材質的焊口還有其附進的去黑、去焊渣工作）去毛刺現象的發生、飛邊、氧化反應皮、304不銹鋼材質的，鋁合金漆層的高貴典雅型亞光工作（耐污性最好、可蓋住刮花）、去水泥砂漿土、石雕漆層污圬等工作。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆主要技巧基本參數 Main technical parameters

機械規格 Model	STR-B型無塵自動循環回收式噴砂機
的工作主機電源 Work power	380V 50HZ
空氣中學習壓力 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
直流電機工率 Motor power	4kw
作業使用率 Work efficiency	6-10m2
本職工作弧長 Work radius	10m 可選擇需要量改長，主要了解克服
的工作方式 Work form	智能循壞的回收利用Automatic cycle recovery
進行清潔中等級 Clean level	Sa2-3
低質度 Roughness	60μm左右時間
自重 Weight	260kg
內部結構大小 Shape dimension	1380×830×1700mm
砂料規格尺寸 Sand material specifications	20-100#以上的（1.0mm-0.04mm）

◆應用比率 Applicable scope

1.環境保護規定要求高且無不管什么除塵處理環保設備的環境；

2.正確處理層級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

選擇范圍內：除銹處理、除刷漆焊接縫隙辦理去鋸齒狀、飛邊、空氣氧化皮不銹鋼、鋁門窗外層的典雅型亞光整理（耐污性好點、可蓋住劃爛）去瀝青水泥混凝土土、石雕外觀污圬等整理。

（準確材質可參考使用A型或垂詢我工司）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 產品特性 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已壓縮的，需求就是說簡便室外鋪設移動端簡便，很大程度上的降底了勞動改造的強度，因此清理速率在我國國內相近型物品方便；得出中大投資者的不同信賴，并現在已經得出了廣泛的的活動推廣和食用！（具體化相關資料可參考資料A型或轉達我集團）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

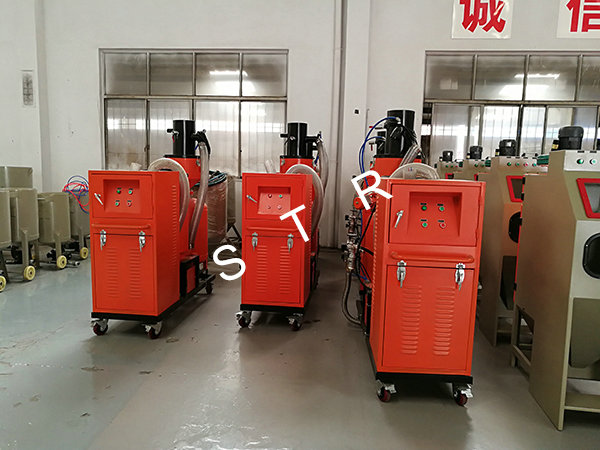

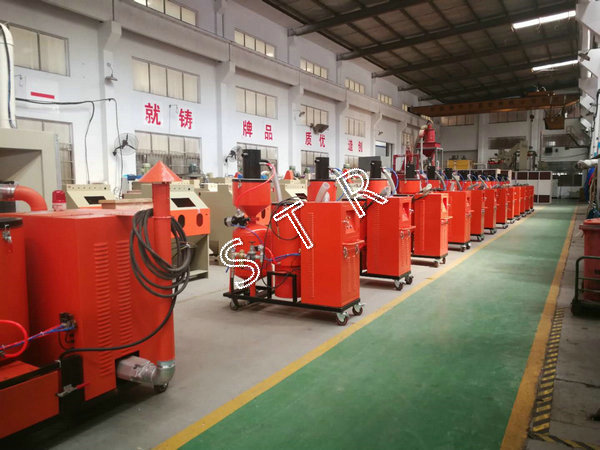

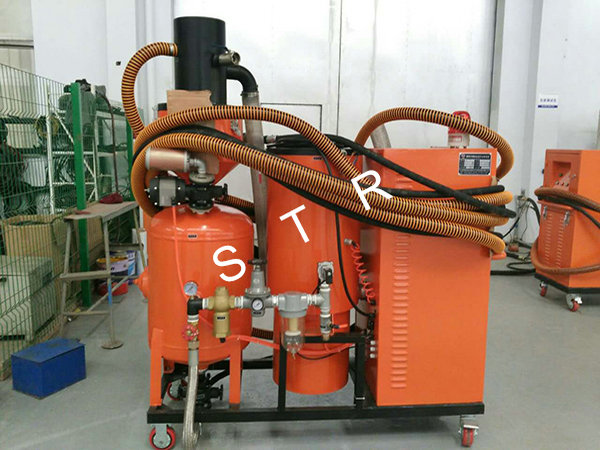

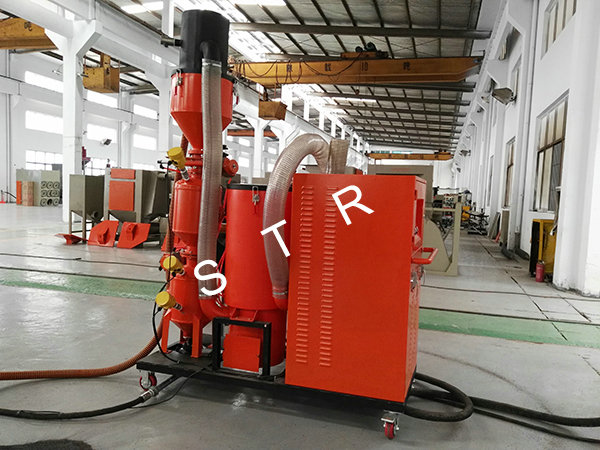

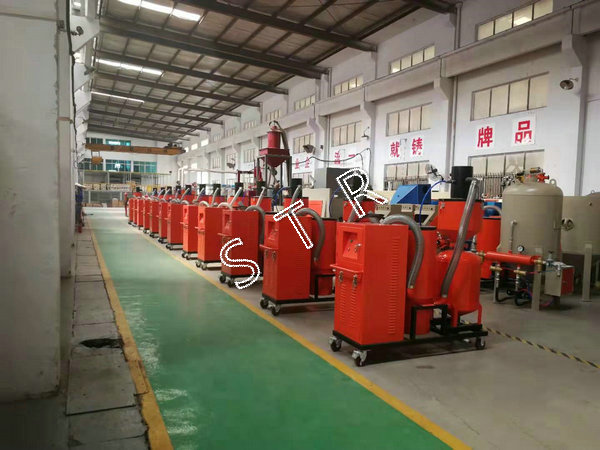

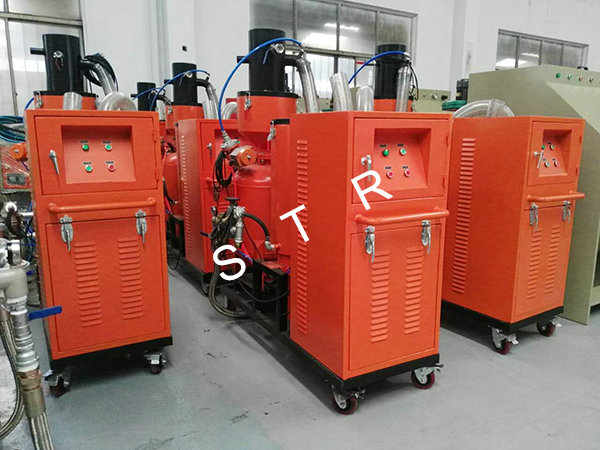

部份無塵自動循環環保型噴砂機案例:
